UNIQUE EQUIPMENT MACHINE

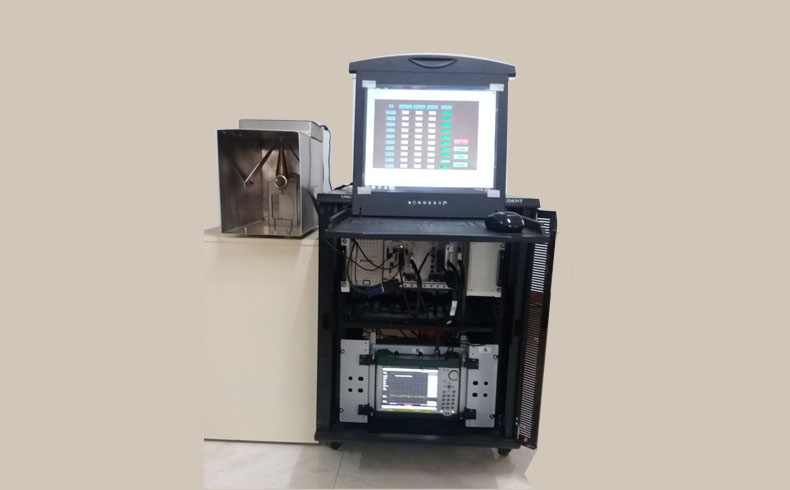

The Unique Equipment machine is a PC based Automatic Test equipment to test RF fuses. There are two similar equipment, one for testing fuses before foaming and another one to test after foaming. Both the equipments are same except the parameters for pass/fail criteria are different and are loaded in the respective PCs accordingly.

Each equipment consists of following major sub-assemblies

• Industrial PC with add on cards – National instrument make
• Modulation Analyser - Spectrum Analyser – Anritsu make model no MS2711E
• Interconnection board assembly
• Power supply assembly.
• Digital Filter box assembly
• Anechoic box assembly
• Printer
• UPS
• Interconnecting cable assembly

Items sl. No 1 to 4 are housed in a 19 “rack assembly. Item sl. No 5 to 8 are standalone units which are kept outside the rack assembly. Item sl no 9 is set of interconnecting cable assemblies to interconnect various sub-assemblies as required. The GUI is built with Lab view software
