PYLON Tester

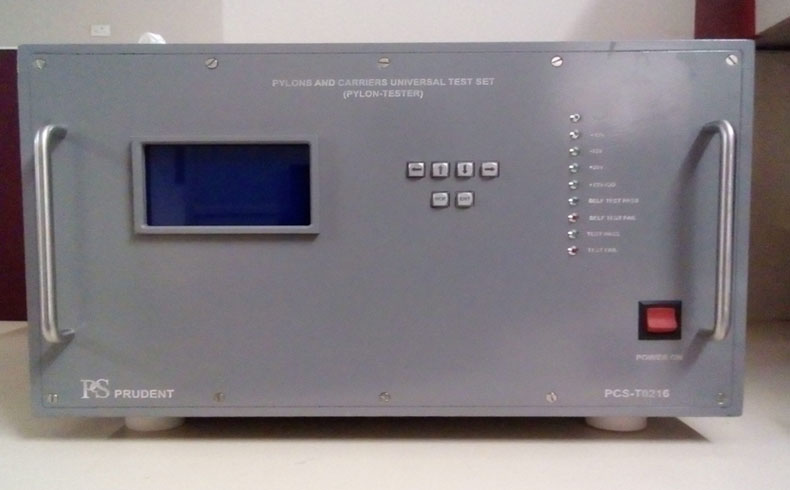

The PYLON TESTER is a portable equipment, automatic circuit analyzer/ground tester designed specifically to check the continuity of circuits at selected switching lines or loadings, to check the leakage current (Insulation Resistance) between each single line and all other lines and to carry out the functional tests of Pylons/Carriers of JAGUAR Aircraft. It operates at 230V±5% AC, 50Hz input supply.
Specifications
Output and operating supply : 22/28 V DC at Max. Current 10 A - Isolated supply output : 22V DC at Max. Current 2.1 A
- Auxiliary output : 25V AC, Max. Current 2 A, with input supply of 230V + 5%
- Continuity Test Ranges (At 28V DC Supply) : 7 Ω, 1 A. 1.5 Ω, 1 A / 5A
- Insulation Test Ranges (At 28V DC supply) : 0.5 M Ω and 5 M Ω
- Number of switching lines : 128
- Provides delay timing pulse to carry out the functional tests as required for Pylons/Carriers
