ANTI-COLLISION LAMP

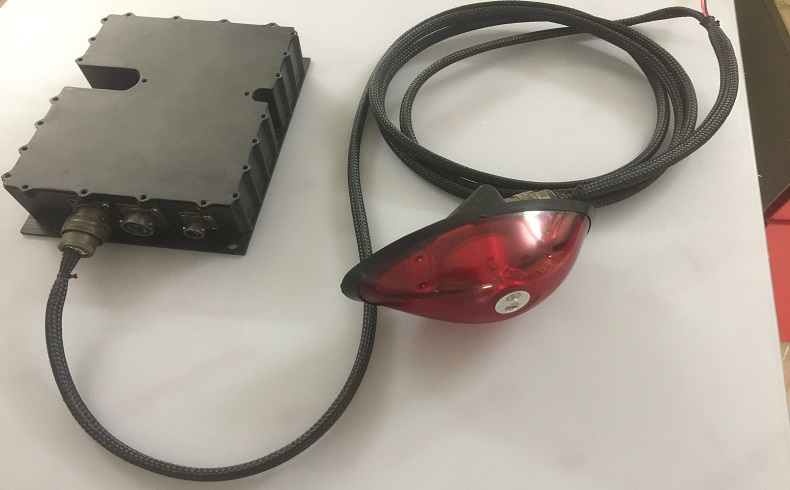

The Anti Collision Lamp is the part of Anti collision system and is powered by strobe light power unit. Both the upper and lower Anti-collision light units in Hawk Aircraft are connected to the strobe light power unit through two cable assemblies. The xenon tubes are ignited by the ignition impulse generators in the strobe light power unit through high voltage oscillations. The flash energy generated by the strobe light power unit to drive xenon tube is about 30 to 40 Joules at a flash rate of 90 ± 10 flashes/min. The Anti collision lamp is categorized as safety critical item.

Brief Specification

• Part No : PCS-2LA002-760-00
• Output colour : Red
• Lamp type : Xenon
• Field of coverage (horizontal) : 360º
• Field of coverage (vertical) : ±30º
• Mass : 0.42Kg (Max)
• Overall Dimension : 160mm (L) X 77mm (W) X 85mm (H)
• Material (base) : Aluminum to Spec 6061 T6
• Dome material : Polycarbonate. (Red colour)
• Sealing material : Silicon rubber
• Finish : White colour paint as per DTD 5567A
• No of light source : 1
• Flash frequency : 0.75±0.083Hz
• Light intensity : > 400 cd/m2
• Peak value of light intensity : > 600 cd/m2
• Light intensity in OFF condition : < 30% of peak value
• Beam width : > 60º
