Indicator Unit of Centralised Warning System
The Indicator Unit of Centralised Warning System provides the indication of the warning status of associated aircraft services.
The Indicator Unit of Centralised Warning System is installed in the cockpit of HAWK aircraft. The Indicator Unit consists of three columns of indicator lights with 14 lights in each column. Each light has two LED’S connected in parallel. This indicator unit receives 42 numbers of warning signals in the form of discrete signals from the Control unit of

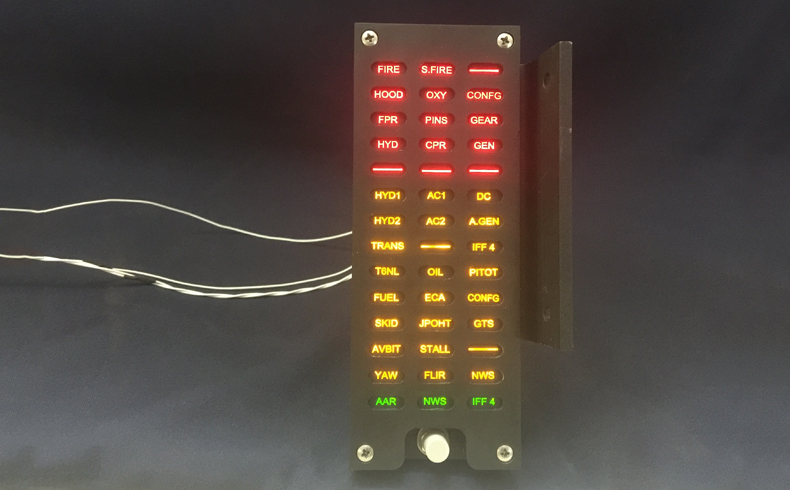

The Indicator unit provides the visual indication of all 42 warning status of associated aircraft services. The top panel of the unit contains 15 red, 24 amber and 3 green display windows marked with associated warning captions. A push button is provided on the front panel of the indicator unit in order to route the 28V power supply back to
Technical SPECIFICATIONS
Operating voltage : 28V D.C - Maximum Current Consumption : 20 mA per signal(MAX)
- Warning caption backlight : LED’s (15 Red, 24 Amber, 3 Green)
- Indicators : 2 LEDs per signal
- Dimension : 145(L), 55mm (W), 74.5mm(H)
- Weight : 500 ± 50 Grams.
- Material : Aluminium to Spec 6061 T6 or equivalent
- Transparent material : Acrylic Sheet as per MIL-PRF-8184
- Finish : Black Anodizing as per MIL-A-8625 REV F
