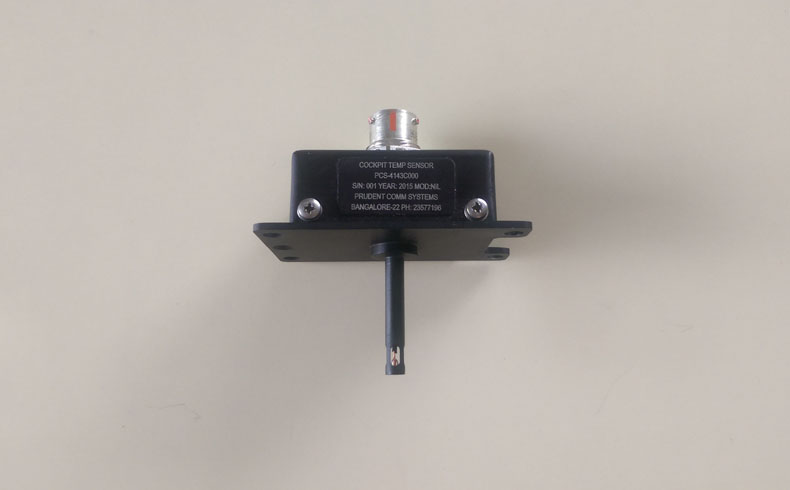

COCKPIT TEMPERATURE SENSOR

The Cockpit Temperature Sensor is designed to sense the air temperature of air conditioning inlet pipeline and close/ open relay contacts depending on the sensed temperature. The Cockpit Temperature Sensor used in Jaguar Aircraft.

SPECIFICATIONS

• Thermistor used, with sense range from -55˚C to 300˚C.
• Electrical Supply : 22-29V DC, (28V DC Nominal)
• Maximum Current Consumption : 50mA at 28V DC
• Temperature Range for Lower Limit : 19⁰C ± 1⁰C
• Temperature Range for Upper Limit : 25⁰C ± 1⁰C
• Routing input supply to External Unit : On detection of Upper Limit
• Removal of input supply to External Unit : On detection of Lower Limi
• Storage Temperature : -54°C to +90°C
• Operating Temperature : -35°C to +70°C
• Humidity : 95% RH
